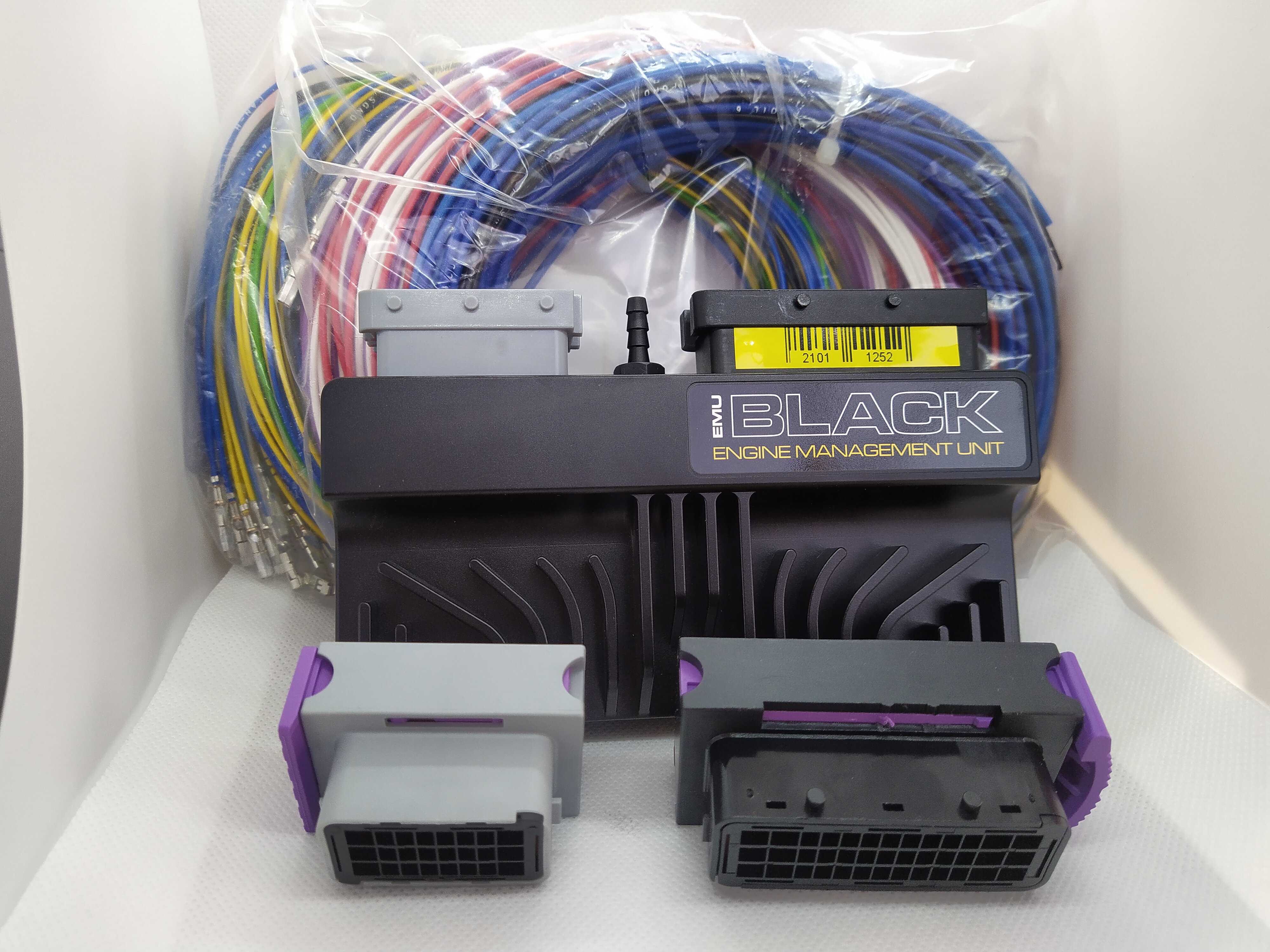

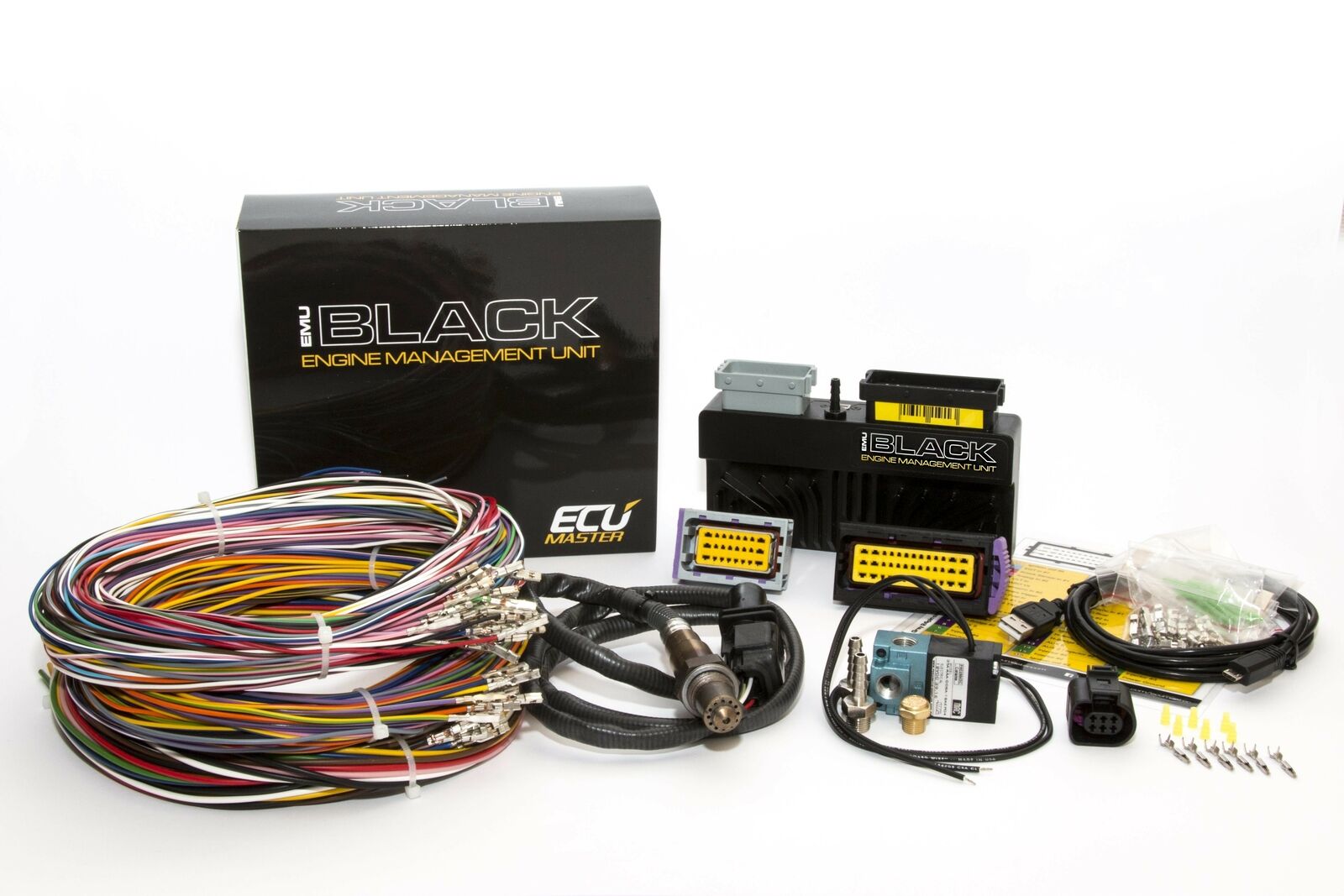

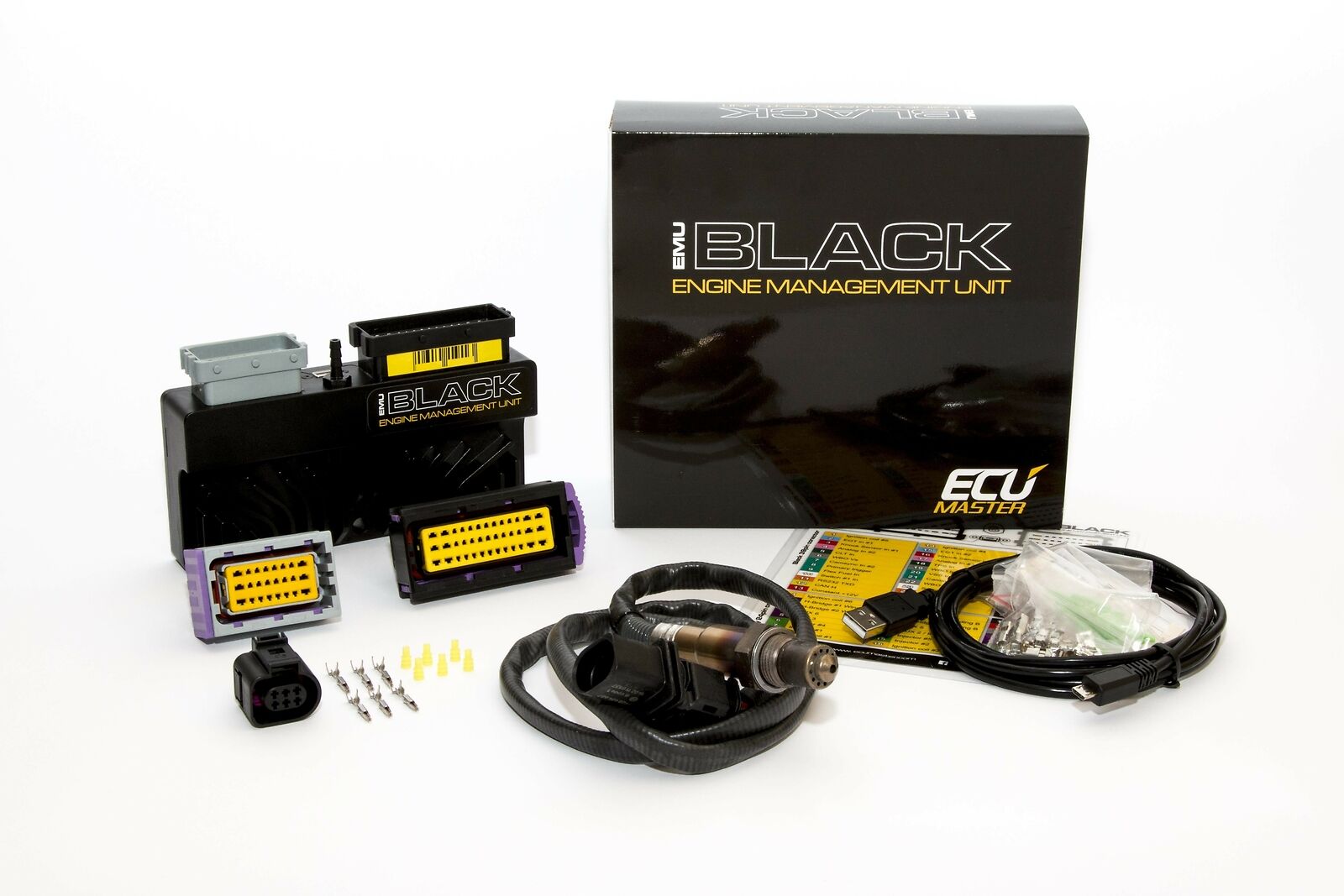

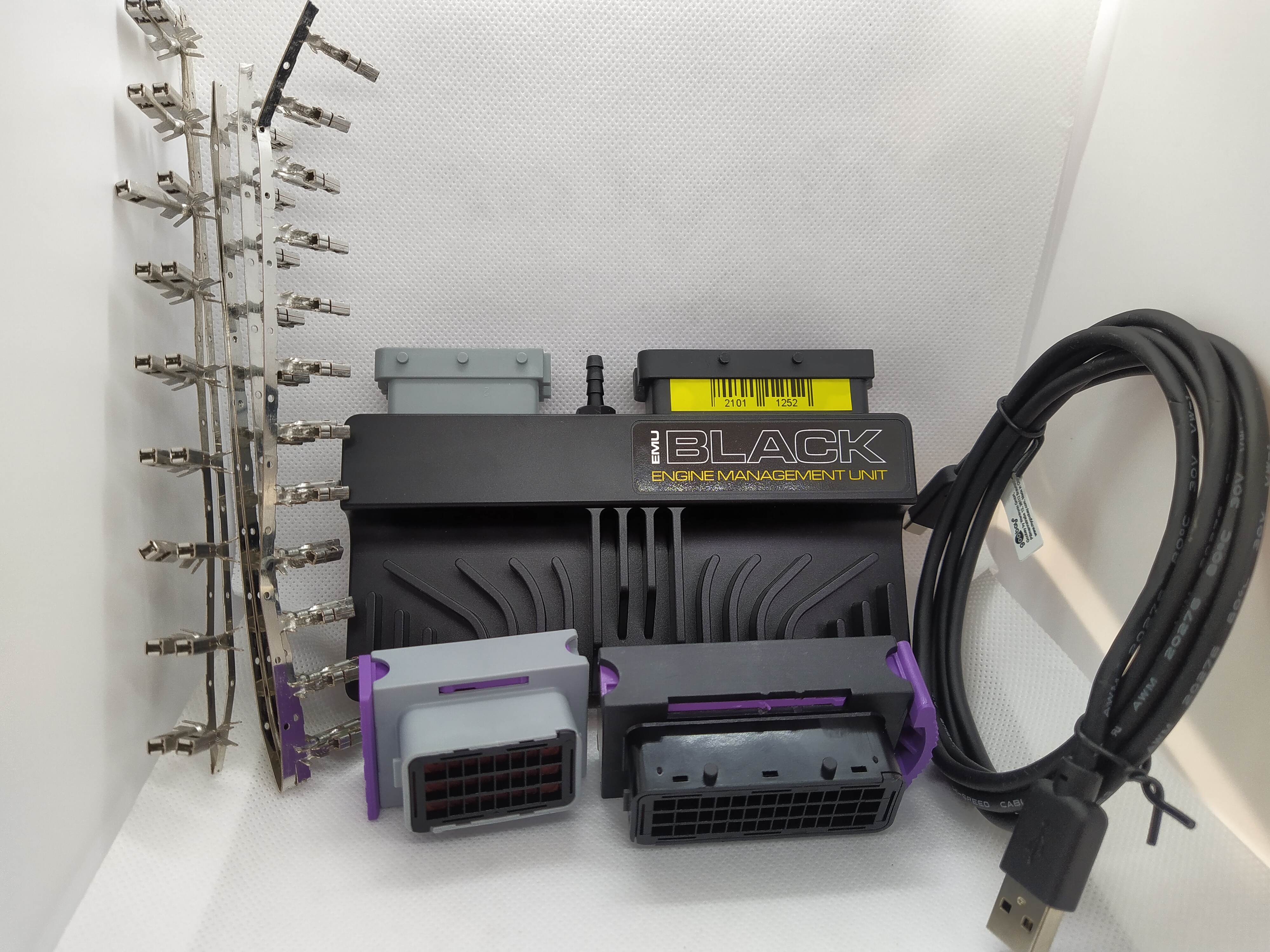

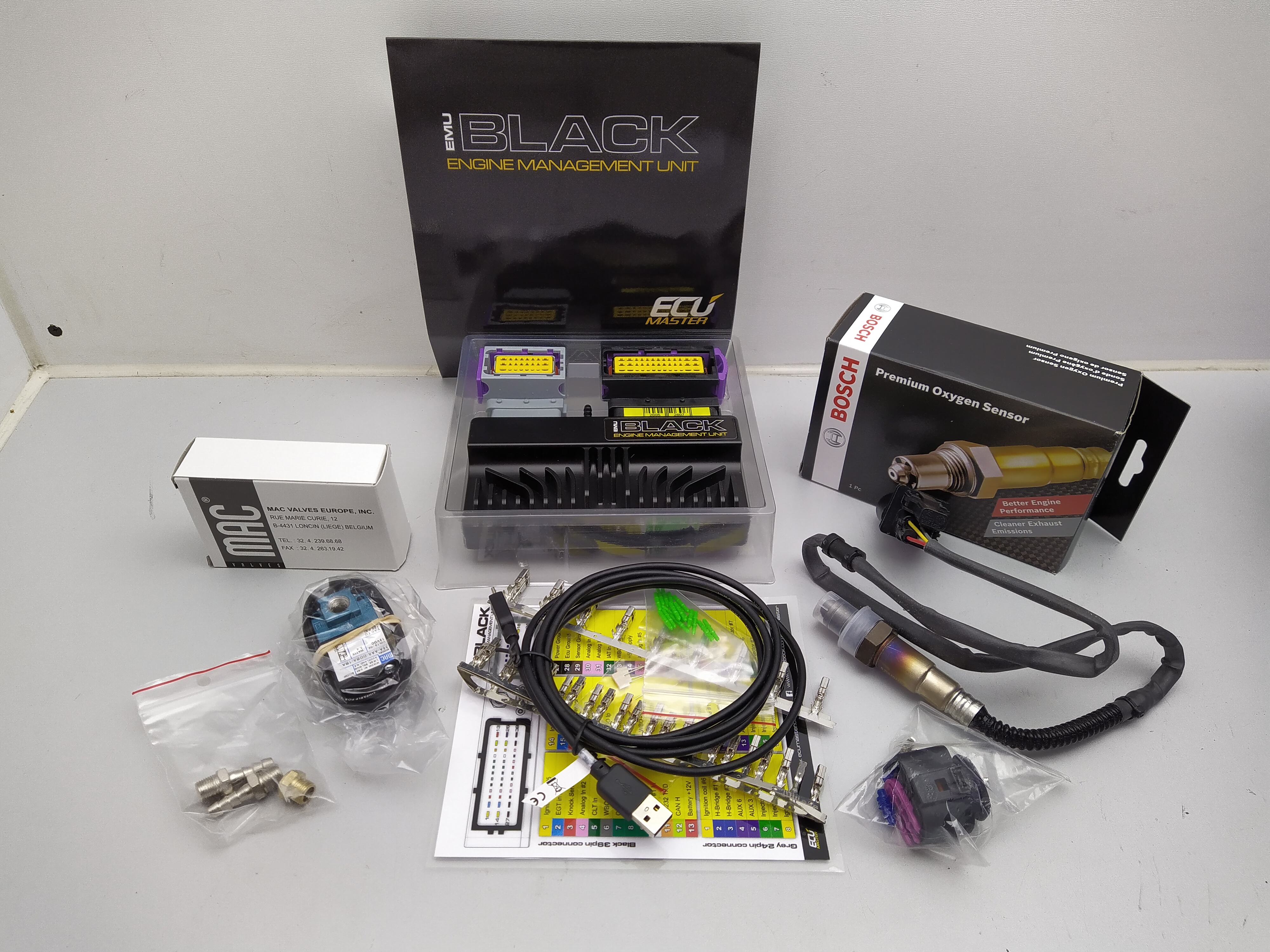

EMU BLACK
The EMU Black is a class-leading, stand-alone engine management system, designed to operate the most advanced and complex engines available. It is a successor of our proven system, EMU. Throughout EMU’s lifetime we collected lots of data that allows us to substantially improve the device hardware and software.
EMU Black targets race cars, road cars, motorcycles, boats, and stationary engine applications.
The EMU Black controls fueling, ignition and auxiliary systems on 1-12 cylinder engines including those with drive-by-wire throttles and VVT.
It can drive up to 6 passive or 12 smart coils directly and does not require external amplifier/power modules to achieve this. Sophisticated drive-by-wire strategies provide a wide range of throttle control along with advanced plausibility (fault/error) checking for safety.
Free, easy to install firmware upgrades further improve system capabilities (e.g. new strategies, trigger patterns, CAN data streams).
The EMU Black features more built-in value than any other aftermarket ECU. It easily matches the functionality of other stand-alone management systems with multiple inputs and outputs. Unlike many other ECU systems, the EMU Black has built-in wideband lambda input (Bosch LSU 4.2, and LSU 4.9 sensors wire directly in), MAP control connector (4 bar MAP sensor on board), 2 EGT probe inputs and an input to directly connect a Flex Fuel ethanol content sensor. All of this provides greater flexibility, reduces costs and negates the requirement for external or supplemental signal conditioning control systems and the associated wiring that other management systems require.
TECHNOLOGY
The EMU Black is assembled according to IPC-S-815A standards to ensure high reliability of the product. The device is manufactured on an automated assembly line with optical inspection, automatically tested including burn-in. The PCB board quality and design, special surface coating and IP60 enclosure keeps the device operational in the harshest environments. The components used allow continued operation in a very wide temperature range (AECQ-100 GRADE 2 (-40 to +105˚C).
SPECIFICATION
GENERAL
Temperature range
AECQ100 GRADE2 (-40 to +105˚C)
Reverse battery protection
Yes, internal
Operating voltage
6-22V, immunity to transients according to ISO 7637
Enclosure
IP 60, custom CNC machined aluminium
Size (mm) and weight(g)
150x72x31, 390
Connectors
1 x 24, 1 x 39 FCI Automotive connector
PC communication
USB (with PC client software), serial, CAN
OUTPUTS
Injector outputs
6 protected outputs 5A, low side
Ignition outputs
6 outputs 7A(15A peak) (passive & active coils supported)
Aux outputs
6 protected outputs 5A, low side
Other outputs
Full bridge up to 7A, can be used as separate outputs or 2 H-Bridges
WBO heater
Protected low side up to 5A
Communication
Serial, CAN BUS 2.0B
INPUTS
Analog inputs
9 inputs, resolution 10Bits, 0-5V (protected)
EGT inputs
2 for K-Type thermocouple
Knock sensor
2 inputs
Oxygen sensor
LSU 4.2, LSU 4.9 or Narrow band
Trigger inputs
3 (primary, 2 cams) Hall/ VR software selectable
VSS
1 (Hall / VR)
Flex Fuel Sensor
Yes
Switch inputs
3 inputs, switched to ground
SENSORS
Temperature sensors
IAT, CLT, Oil temperature, AC evap temperature
Pressure sensor
MAP, Oil pressure, Fuel pressure (user defined characteristic), AC pressure sensor, Back pressure
Oxygen sensor
LSU 4.2 or 4.9 (built in controller), Narrow band, external WBO controllers
Speed
Vehicle speed sensor (VR/HALL), Gear sensor (sensor, calculated)
FUELING
Injectors
Up to 8 HiZ injectors (sequential)
Injection angle control
0-720 deg, start or end of injections
Battery compensation
User defined, wizard for popular injectors
Fueling strategies
VE based speed density, Alpha N
Air charge temp.
Based on IAT and CLT
VE table
2 tables 16×20 (Load x RPM), resolution of 0.1%
Individual cylinder trim
Yes
Staged injection
Yes
Additional correction
Oxygen sensor corrections, EGT correction (per cylinder), BARO, TPS vs MAP, TPS vs RPM, Warmup, Nitrous, LC, ALS, ASE, Fuel pressure, Knock sensor
Lambda based real time correction
Using Lambda target table
Acc. / Deceleration enrichment
Yes
IGNITION
Ignition outputs
6 for passive and active coils (software selectable)
Supported triggers
N-1, N-2, N-3, N+1, Multitooth, Subaru triggers, Nissan trigger, Lotus Elise, Audi trigger, Renault Clio Wiliams / Alpine, Colt 1.5CZ, Wrangler
Ignition angle table
2 tables 16×20 (Load x RPM), resolution of 0.5 Deg
Per cylinder trim
Yes
Dwell time battery compensation
Used defined, wizard for popular coils
Odd fire compatibility
Application dependent
Additional correction
CLT, IAT, TPS vs MAP, Nitrous, Idle, Knock sensor, LC, Pit limiter, ALS, Flat shift, Timers, Acc. enrichment
KNOCK SENSING
Channels
2
Resonant frequency range
1-20kHz, 3rd order AAF
Sampling
Ignition event driven, knock window
Actions
Ignition retard, fuel enrichment, dashboard indication
IDLE CONTROL
Control type
PWM solenoids (2,3 wires), drive by wire, stepper motors (bi and unipolar), ignition cut, fuel cut
Control strategy
Open / Close loop , ignition angle control
VE correction
Yes, for Alpha-N
Corrections
AC clutch, coolant fan, analog input
BOOST CONTROL
Boost ref and target tables
2 sets 10×10 (TPS vs RPM)
Control strategies
Open / Closed loop (PID based)
Corrections
Gear, VSS, IAT, EGT
DRIVE BY WIRE
Control strategy
Advanced 3D PID + static friction compensation
Supported throttles
All with DC motor and current requirement lower than 6.5A
Wizard for 28 popular electronic throttles
PPS to throttle position characteristic
3D table
BLIP support
Yes
ALS support
Yes
TRACTION CONTROL
TC strategy
Delta RPM, gear compensation
Torque reduction
Spark cut using 3D table (16×20)
Sensitivity control
10 position rotary switch
VARIABLE VALVE TIMING
Supported systems
VVTi, MiVec, VANOS, Double Vanos
Number of camshafts
2
Control strategy
PID based closed loop, CAM angle target tables 12×12
FLEX FUEL
Ethanol content measurement
Yes
Fuel temperature measurement
Yes
Tables blending
VE, IGN, Lambda/AFR, Boost, Cranking fuel, ASE, Warmup
Fuel temperature PW correction
Yes
SPORT
ALS
2 independent ALS setting, DBW support
Shift light
Per gear shift light
Launch control
Yes
Gear cut
Yes (Open loop), DBW blip supported
Source: Switch, load cell, CAN
Pit limiter
Yes
Rolling anti lag
Yes
ENGINE PROTECTION
Fail safe values for critical sensors
Yes
Dashboard indication of failures
Yes, user defined
Over temperature engine protection
Yes (oil and coolant), user defined, RPM limit
Low oil pressure protection
Yes, user defined, shut off
Fuel pressure protection
Yes, fuel dose compensation, RPM limit, engine shut off
High exhaust temperature
Alarm, per cylinder fuel trim, boost limit
CAN BUS
CAN standard
2.0B 125, 250, 500, 1000 kbps
Supported CAN Dashes
ECUMASTER, Motec M800 Set 1, Haltech E8 E11v2, Pectel SQ 6, AEM
Supported OEM CAN streams
BMW E46, Citroen C2, Mazda RX8, Ford ST, Polaris RZR, Mini Cooper R53, Fiat 500, Renault Clio, Lotus, Ford Fiesta, Ford ST, EVO X (AYC support)
OTHER
Unused injection outputs can be used as AUX output
Yes
Output functions
Fuel pump, coolant fan, parametric outputs, nitrous control, PWM 3D table output, AC clutch, main relay, speedometer, tachometer
Password protection
Yes, 2 levels
Timers
Fuel, Ignition, Boost, timers controlled by virtual outputs
Serial dashboard support
AIM, RaceTechnology
Autotune
Yes
Built in trigger scope
Yes
Logging
Real time logging to PC computer, logging on external loggers (serial / CAN)
