TY752XRDAA Schaltgetriebe Subaru Legacy 2 BD BG
Produktnummer:
SK10582
Produktinformationen "TY752XRDAA Schaltgetriebe Subaru Legacy 2 BD BG"
Subaru Legacy 2 BD BG Getriebe.
Voll funktionsfähig
Laufleistung 195tkm

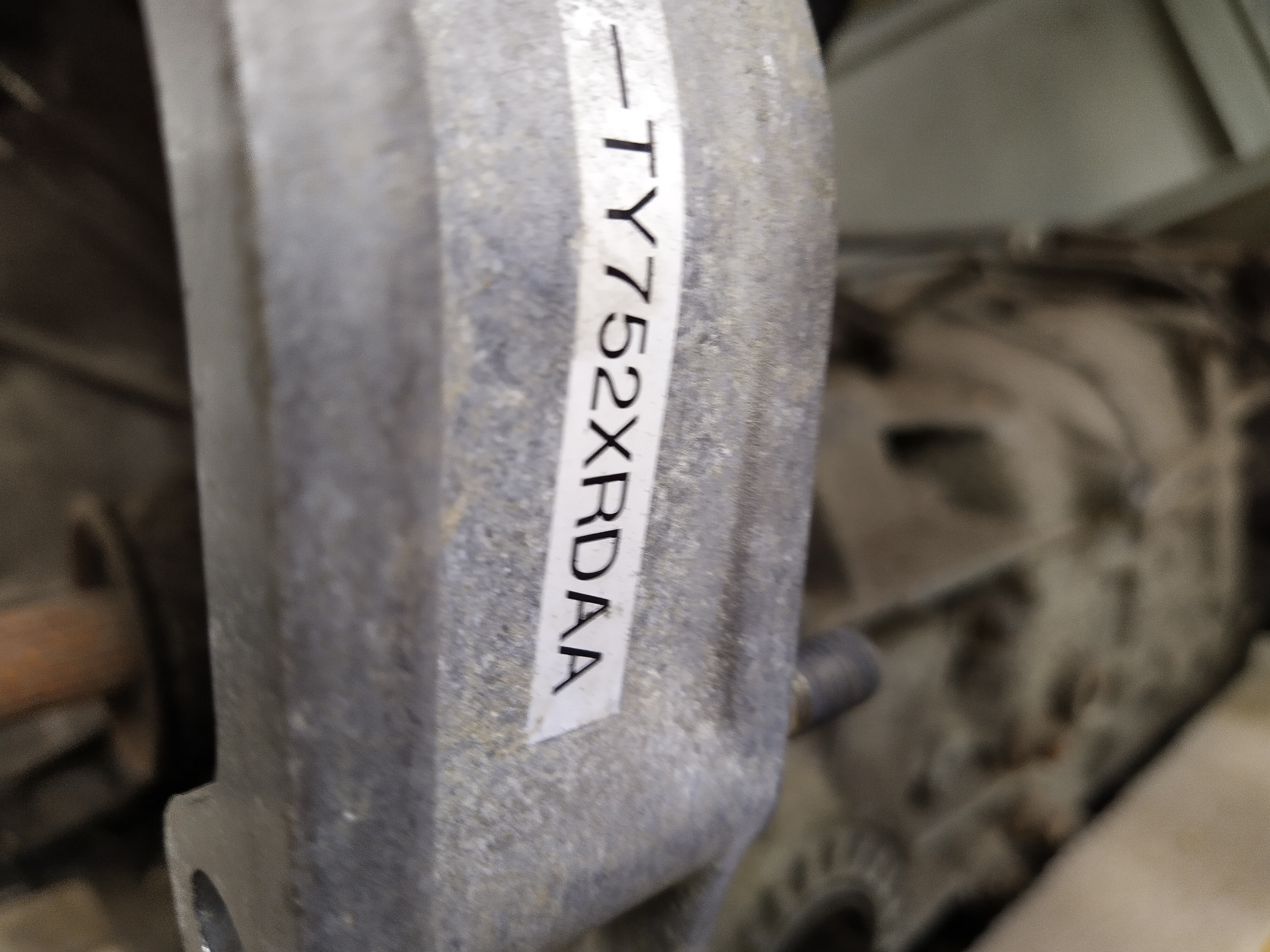

Herstellernummer: TY752XRDAA
Model Applications
Ten Subaru Model variations fitted with Transmission Type TY752XRDAA as standard, or available as a factory fitted option.
| TY752XRDAA | BG5 | E | CH | Legacy 2.0 LX AWD | Apr. | '97 | – | May | '98 | |
|---|---|---|---|---|---|---|---|---|---|---|
| TY752XRDAA | BG5 | E | GB | Legacy 2.0 GL Classic AWD | 115 PS | Apr. | '97 | – | May | '98 |
| TY752XRDAA | BG5 | E | GB | Legacy 2.0 LX Classic AWD | 115 PS | Apr. | '97 | – | May | '98 |
| TY752XRDAA | BG5 | F | GB | Legacy 2.0 LX Classic AWD | 115 PS | Mar. | '98 | – | Dec. | '98 |
| TY752XRDAA | BG5 | F | GB | Legacy 2.0 GL Classic AWD | 115 PS | Jun. | '98 | – | Apr. | '99 |
| TY752XRDAA | BGA | E | EU | Legacy 2.0 LX AWD EP-S | Jun. | '97 | – | Jul. | '98 | |
| TY752XRDAA | GF8 | F | EU | Impreza 2.0 GL AWD | Jul. | '97 | – | Jun. | '98 | |
| TY752XRDAA | GF8 | F | CH | Impreza 2.0 GL AWD | Jul. | '97 | – | May | '98 | |
| TY752XRDAA | GF8 | F | GB | Impreza Sport AWD | 120 PS | Jul. | '97 | – | Jun. | '98 |
| TY752XRDAA | GF8 | F | GB | Impreza 2.0 GL AWD | Jul. | '97 | – | Jun. | '98 |
Plot GraphTransmission Specification
Dual Range 5-Speed Manual Transmission (5MT), fitted new to production cars from April 1997 to April 1999.
Main Transmission
| First Gear Ratio | 3. | 545 | :1 |
| Second Gear Ratio | 2. | 111 | :1 |
| Third Gear Ratio | 1. | 448 | :1 |
| Forth Gear Ratio | 1. | 088 | :1 |
| Fifth Gear Ratio | 0. | 871 | :1 |
| Sixth Gear Ratio | … | ||
| Seventh Gear Ratio | … | ||
| Reverse Gear Ratio | 3. | 416 | :1 |
| High Range Ratio | 1. | 000 | :1 |
| Low Range Ratio | 1. | 447 | :1 |
Drive System
| Full-time four wheel drive (VCD) Bevel gear type centre differential with viscous coupling slip limiter. | |
| Rear Drive Transfer Ratio | 1.000:1 |
Front Differential
| Type | Open |
| Ring Gear Teeth | 39 |
| Pinion Gear Teeth | 10 |
| Final Drive Ratio | 3.900:1 |
Rear Differential
| Final Drive Ratio | 3.900:1 |
Vehicle Speed at 1,000 rpm
| Tyre Size‡ | First | Second | Third | Forth | Fifth | Sixth | Seventh | Reverse | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 185/ | 70 | R14 | 8.38 km/h(5.21 mph) | 14.07 km/h(8.74 mph) | 20.51 km/h(12.75 mph) | 27.30 km/h(16.96 mph) | 34.10 km/h(21.19 mph) | … | … | −8.70 km/h(−5.40 mph) |
| 195/ | 60 | R15 | 8.38 km/h(5.21 mph) | 14.08 km/h(8.75 mph) | 20.53 km/h(12.76 mph) | 27.32 km/h(16.98 mph) | 34.13 km/h(21.21 mph) | … | … | −8.70 km/h(−5.41 mph) |
‡ The Tyre Sizes shown are the various OEM sizes for Subarus fitted with Transmission Type TY752XRDAA. For other tyre sizes, or for vehicle speeds at different engine speeds, see the Vehicle Speed Calculator and Graph page.
Transmissions with Matching Ratios
| TW752SC1AA | Selectable 4-Wheel Drive (SEL4) | Open Front Differential |
| TW752SC2AA | Selectable 4-Wheel Drive (SEL4) | Open Front Differential |
| TY752VC1AA | Viscous Limited-Slip Centre Differential (VCD) | Open Front Differential |
| TY752VC2AA | Viscous Limited-Slip Centre Differential (VCD) | Open Front Differential |
| TY752VD2AA | Viscous Limited-Slip Centre Differential (VCD) | Open Front Differential |
| TY752VG2AA | Viscous Limited-Slip Centre Differential (VCD) | Open Front Differential |
| TY752VRAAA | Viscous Limited-Slip Centre Differential (VCD) | Open Front Differential |
| TY752VRBAA | Viscous Limited-Slip Centre Differential (VCD) | Open Front Differential |
| TY752VRCAA | Viscous Limited-Slip Centre Differential (VCD) | Open Front Differential |
| TY752X3DCA | Viscous Limited-Slip Centre Differential (VCD) | Open Front Differential |
| TY752XG1AA | Viscous Limited-Slip Centre Differential (VCD) | Open Front Differential |
| TY752XG2BA | Viscous Limited-Slip Centre Differential (VCD) | Open Front Differential |
| TY752XH1AA | Viscous Limited-Slip Centre Differential (VCD) | Open Front Differential |
| TY752XRAAA | Viscous Limited-Slip Centre Differential (VCD) | Open Front Differential |
| TY752XRBAA | Viscous Limited-Slip Centre Differential (VCD) | Open Front Differential |
| TY752XRBAB | Viscous Limited-Slip Centre Differential (VCD) | Open Front Differential |
| TY752XRCAA | Viscous Limited-Slip Centre Differential (VCD) | Open Front Differentia |
| Hersteller: : | Subaru |
|---|---|
| Zustand: : | gebraucht |
