Subaru Impreza, Legacy Schaltgetriebe TY752XRCAA
Produktnummer:
SK10586
Produktinformationen "Subaru Impreza, Legacy Schaltgetriebe TY752XRCAA"

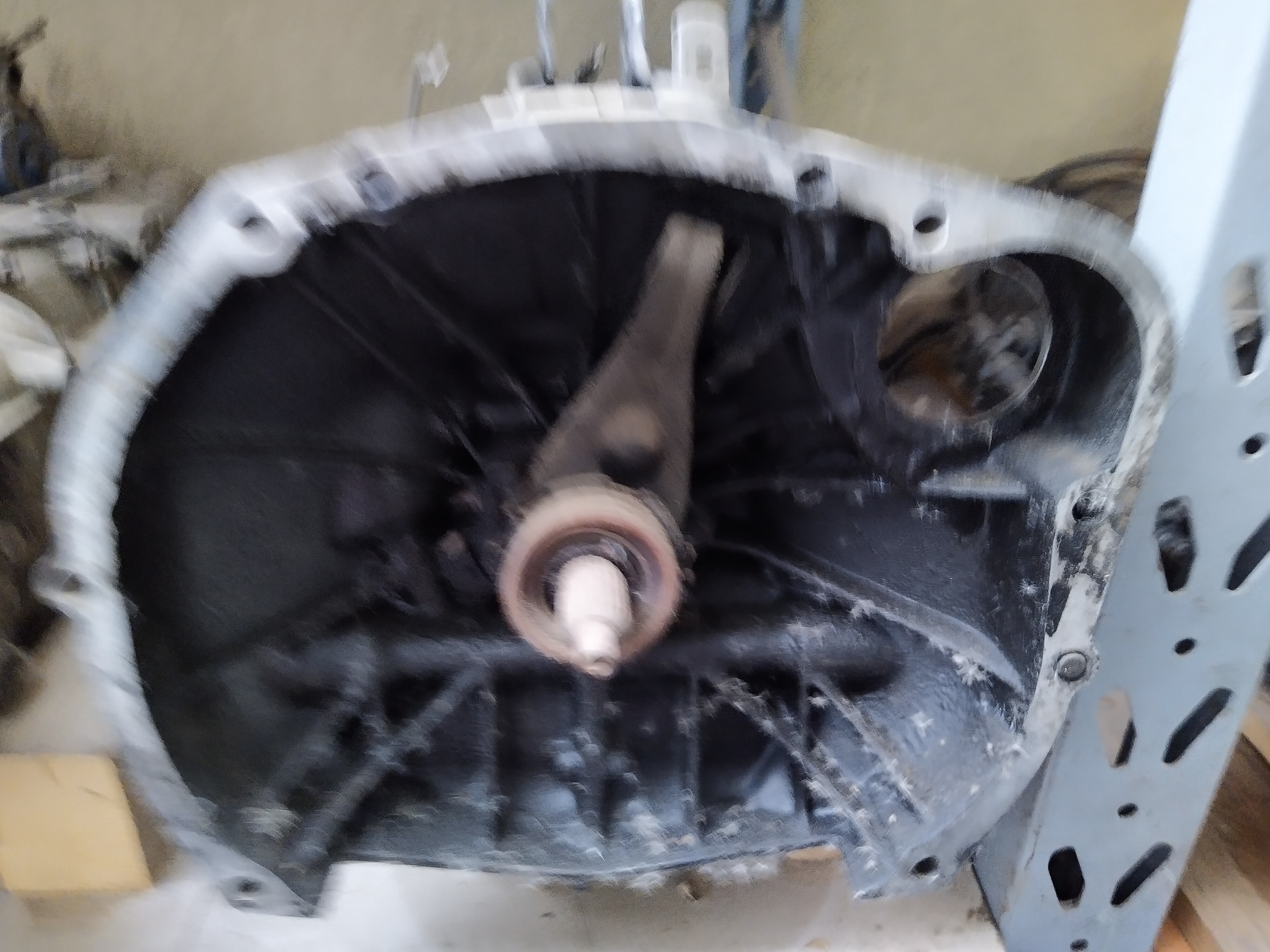

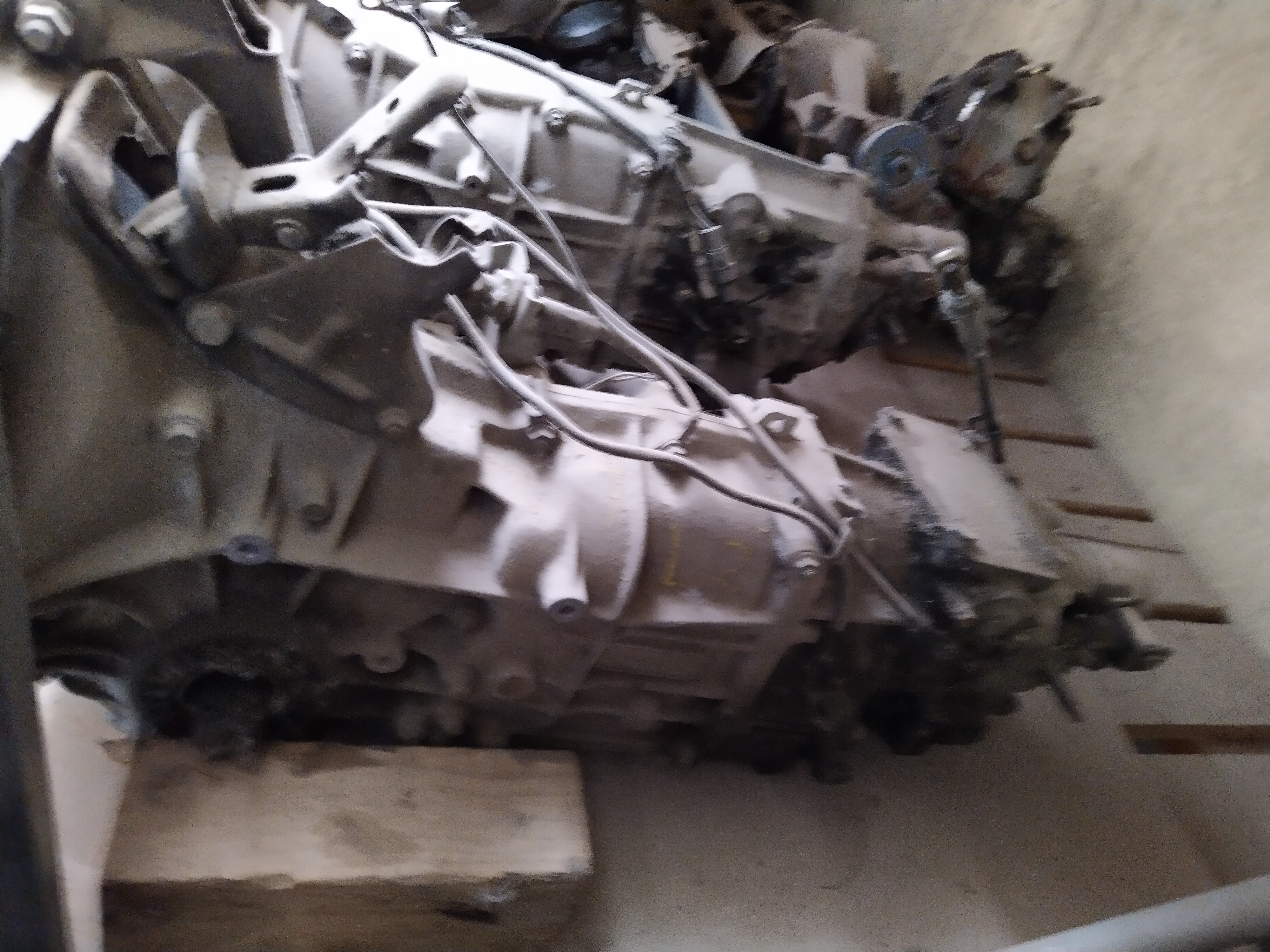

Subaru Impreza 97 Schaltgetriebe auch passend für Subaru Legacy
Voll funktionsfähig
Laufleistung nach Tacho : 211tkm

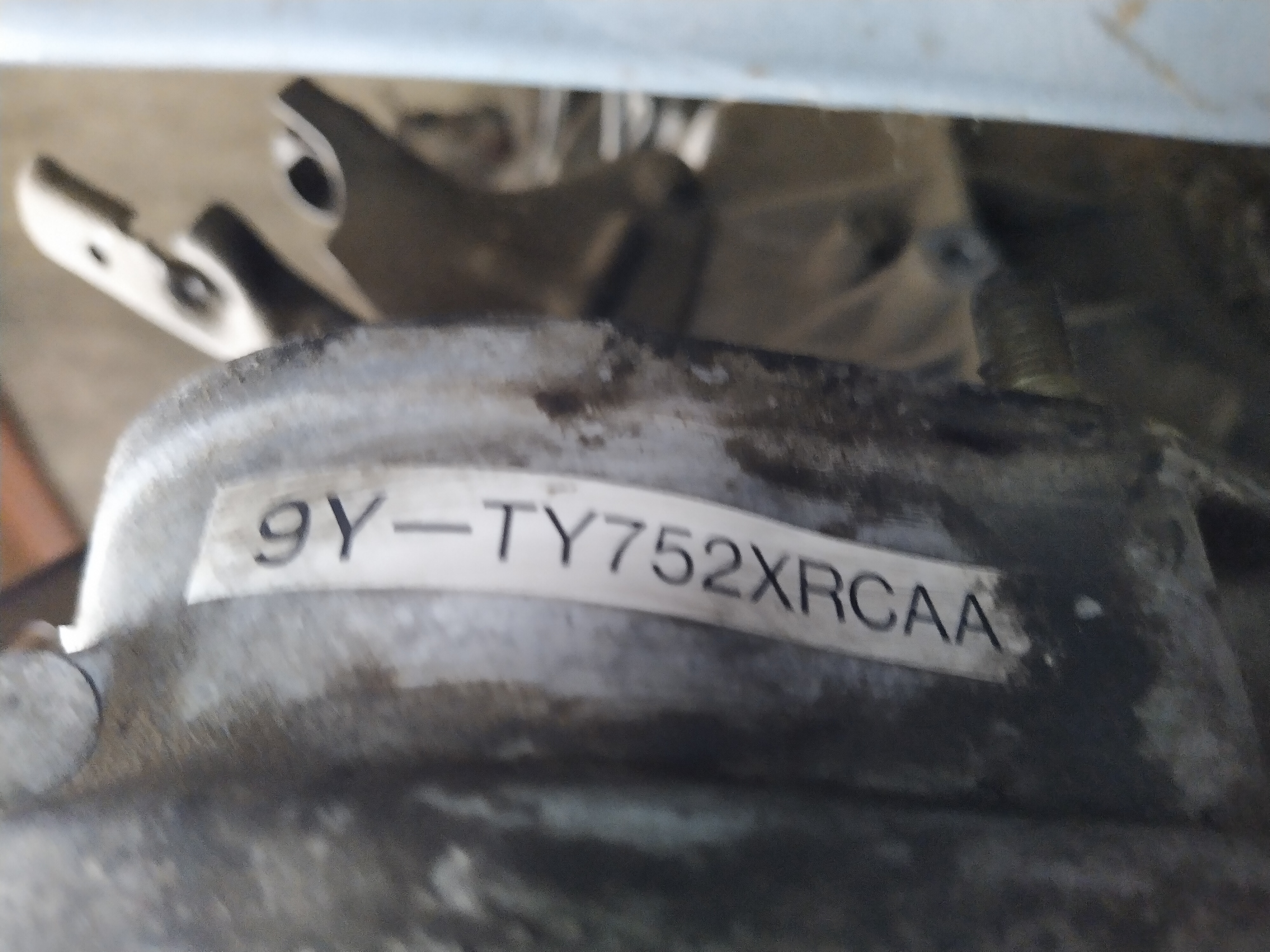

Herstellernummer: TY752XRCAA
Getriebedaten -> https://legacypic.uk/transmission/search.php?code=ty752xrcaa
Model Applications
Eight Subaru Model variations fitted with Transmission Type TY752XRCAA as standard, or available as a factory fitted option.
| TY752XRCAA | BG5 | D | CH | Legacy 2.0 LX AWD | 115 PS | Mar. | '96 | – | May | '97 |
|---|---|---|---|---|---|---|---|---|---|---|
| TY752XRCAA | BG5 | D | GB | Legacy 2.0 GLS AWD | 115 PS | May | '96 | – | May | '97 |
| TY752XRCAA | BG5 | D | EU | Legacy 2.0 LX AWD | 115 PS | Jun. | '96 | – | May | '97 |
| TY752XRCAA | BG5 | D | GB | Legacy 2.0 LX AWD | 115 PS | Aug. | '96 | – | May | '97 |
| TY752XRCAA | BGA | D | EU | Legacy 2.0 LX AWD EP-S | Jun. | '96 | – | May | '97 | |
| TY752XRCAA | GF8 | E | GB | Impreza Sport AWD | 120 PS | Aug. | '96 | – | May | '97 |
| TY752XRCAA | GF8 | E | GB | Impreza 2.0 GL AWD | Aug. | '96 | – | Jun. | '97 | |
| TY752XRCAA | GF8 | E | GB | Impreza Sport AWD LIMITED EDITION | 120 PS | Jan. | '97 | – | May | '97 |
Plot GraphTransmission Specification
Dual Range 5-Speed Manual Transmission (5MT), fitted new to production cars from March 1996 to June 1997.
Main Transmission
| First Gear Ratio | 3. | 545 | :1 |
| Second Gear Ratio | 2. | 111 | :1 |
| Third Gear Ratio | 1. | 448 | :1 |
| Forth Gear Ratio | 1. | 088 | :1 |
| Fifth Gear Ratio | 0. | 871 | :1 |
| Sixth Gear Ratio | … | ||
| Seventh Gear Ratio | … | ||
| Reverse Gear Ratio | 3. | 416 | :1 |
| High Range Ratio | 1. | 000 | :1 |
| Low Range Ratio | 1. | 196 | :1 |
Drive System
| Full-time four wheel drive (VCD) Bevel gear type centre differential with viscous coupling slip limiter. | |
| Rear Drive Transfer Ratio | 1.000:1 |
Front Differential
| Type | Open |
| Ring Gear Teeth | 39 |
| Pinion Gear Teeth | 10 |
| Final Drive Ratio | 3.900:1 |
Rear Differential
| Final Drive Ratio | 3.900:1 |
Vehicle Speed at 1,000 rpm
| Tyre Size‡ | First | Second | Third | Forth | Fifth | Sixth | Seventh | Reverse | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 185/ | 70 | R14 | 8.38 km/h(5.21 mph) | 14.07 km/h(8.74 mph) | 20.51 km/h(12.75 mph) | 27.30 km/h(16.96 mph) | 34.10 km/h(21.19 mph) | … | … | −8.70 km/h(−5.40 mph) |
| 195/ | 60 | R15 | 8.38 km/h(5.21 mph) | 14.08 km/h(8.75 mph) | 20.53 km/h(12.76 mph) | 27.32 km/h(16.98 mph) | 34.13 km/h(21.21 mph) | … | … | −8.70 km/h(−5.41 mph) |
‡ The Tyre Sizes shown are the various OEM sizes for Subarus fitted with Transmission Type TY752XRCAA. For other tyre sizes, or for vehicle speeds at different engine speeds, see the Vehicle Speed Calculator and Graph page.
Transmissions with Matching Ratios
| TW752SC1AA | Selectable 4-Wheel Drive (SEL4) | Open Front Differential |
| TW752SC2AA | Selectable 4-Wheel Drive (SEL4) | Open Front Differential |
| TY752VC1AA | Viscous Limited-Slip Centre Differential (VCD) | Open Front Differential |
| TY752VC2AA | Viscous Limited-Slip Centre Differential (VCD) | Open Front Differential |
| TY752VD2AA | Viscous Limited-Slip Centre Differential (VCD) | Open Front Differential |
| TY752VG2AA | Viscous Limited-Slip Centre Differential (VCD) | Open Front Differential |
| TY752VRAAA | Viscous Limited-Slip Centre Differential (VCD) | Open Front Differential |
| TY752VRBAA | Viscous Limited-Slip Centre Differential (VCD) | Open Front Differential |
| TY752VRCAA | Viscous Limited-Slip Centre Differential (VCD) | Open Front Differential |
| TY752X3DCA | Viscous Limited-Slip Centre Differential (VCD) | Open Front Differential |
| TY752XG1AA | Viscous Limited-Slip Centre Differential (VCD) | Open Front Differential |
| TY752XG2BA | Viscous Limited-Slip Centre Differential (VCD) | Open Front Differential |
| TY752XH1AA | Viscous Limited-Slip Centre Differential (VCD) | Open Front Differential |
| TY752XRAAA | Viscous Limited-Slip Centre Differential (VCD) | Open Front Differential |
| TY752XRBAA | Viscous Limited-Slip Centre Differential (VCD) | Open Front Differential |
| TY752XRBAB | Viscous Limited-Slip Centre Differential (VCD) | Open Front Differential |
| TY752XRDAA | Viscous Limited-Slip Centre Differential (VCD) | Open Front Diffe |
| Hersteller: : | Subaru |
|---|---|
| Zustand: : | gebraucht |
